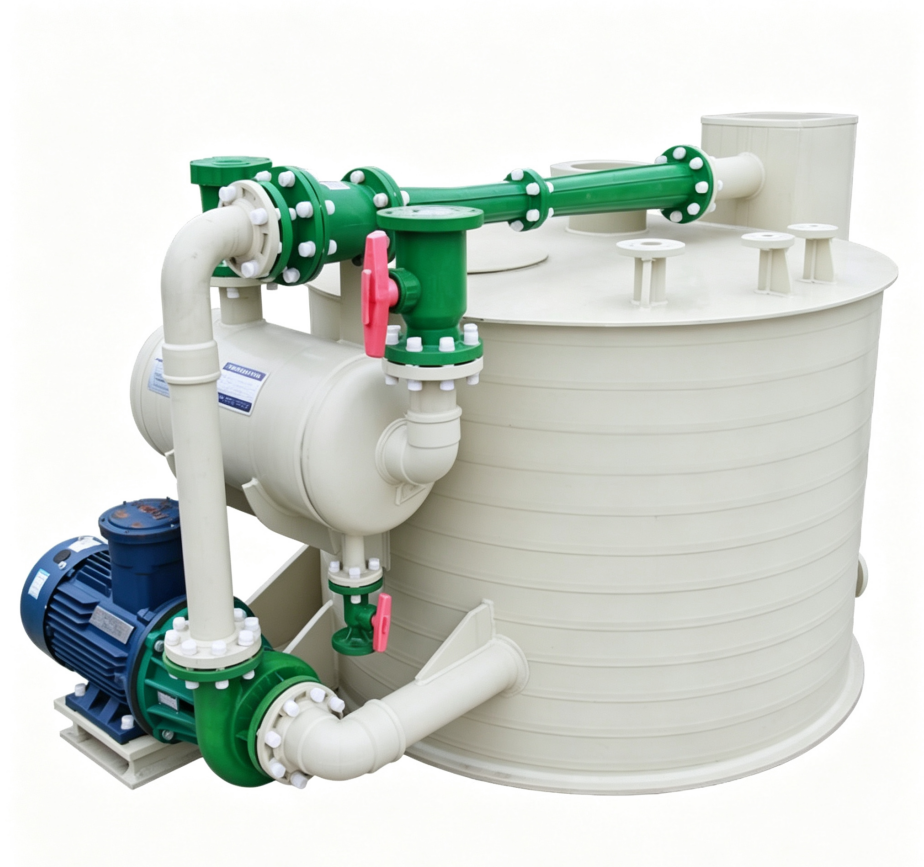

Our self-developed patented Xin'anjiang water jet vacuum pump uses reinforced polypropylene and F40-lined steel for outstanding corrosion resistance. Serial connection with steam jet pumps delivers higher vacuum. It has high mechanical strength, smooth surface, compact simple structure and minimal wearing parts, with longer service life, larger exhaust capacity and superior vacuum performance than competitors.
The Xin'anjiang series water jet vacuum pump is a patented product independently developed by our company. It uses reinforced polypropylene plastic and F40 steel lining, providing excellent corrosion resistance. When used in series with a steam jet pump, it achieves even higher vacuum levels. This product features strong corrosion resistance, high mechanical strength, a smooth surface, simple structure, small size, and few vulnerable parts. Compared to similar products on the market, it boasts a longer service life, larger exhaust volume, and higher vacuum level.

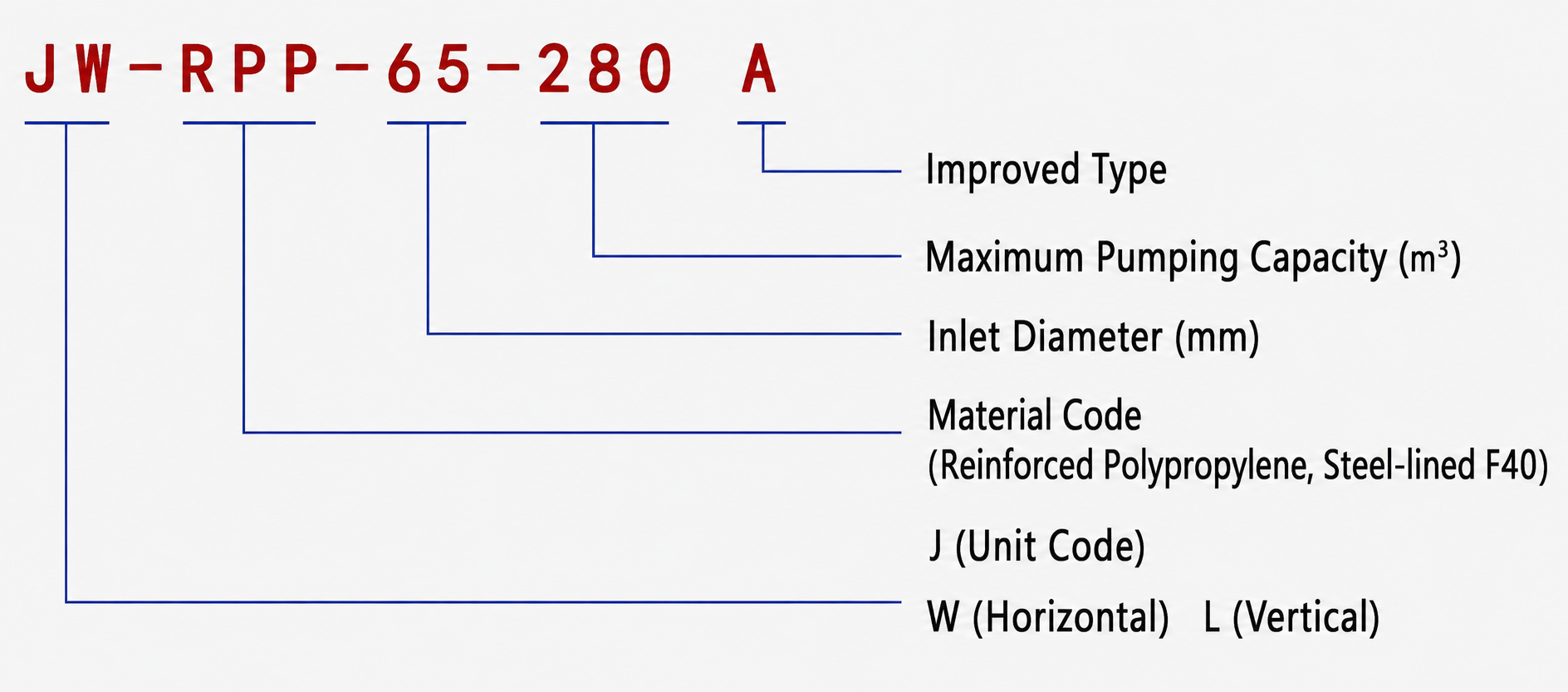

Model Description

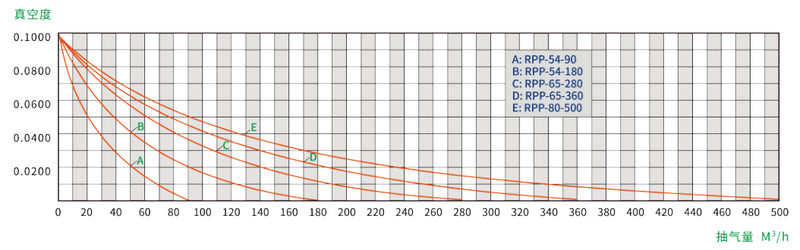

Performance range diagram
Performance Parameter Table
Product Model
Ultimate Vacuum (MPa)
Guaranteed Vacuum
Maximum Pumping Capacity (m³/h)
Matching Model and Motor Power (kW)
Overall Size L × W × H (mm)
Remarks
MPa
mmHg
RPP
RPP-25-20
0.0985
0.098
735
20
40FP(D)-18 (1.5)
1100 • 600 • 800
Note: The actual vacuum degree is based on the local atmospheric pressure at that time - the guaranteed vacuum degree of this technical parameter.
RPP-32-40
0.0985
0.098
735
40
50FP(D)-22 (2.2)
1100 • 700 • 800
RPP-40-60
0.098
0.097
728
60
50FP(D)-25 (3)
1550 • 1000 • 1150
RPP-54-90
0.098
0.097
728
90
65FP(D)-28 (4)
1750 • 1000 • 1200
RPP-54-110
0.0985
0.0975
732
110
80FP(D)-30 (5.5)
1750 • 1000 • 1200
RPP-54-180
0.0993
0.098
735
180
80FP(D)-30 (5.5)
1850 • 1000 • 1250
RPP-65-280
0.0993
0.098
735
280
80FP(D)-32 (7.5)
1950 • 1000 • 1300
RPP-65-280A
0.0996
0.099
740
280
80FP(D)-32 (7.5)
1950 • 1000 • 1350
RPP-65-360
0.0995
0.098
735
360
100FP(D)-30 (11)
2450 • 1200 • 1300
RPP-80-280A
0.0995
0.098
740
360
100FP(D)-30 (11)
2450 • 1200 • 1300
RPP-80-360A
0.0998
0.099
740
360
100FP(D)-30 (11)
2450 • 1200 • 1350
RPP-80-500
0.0995
0.098
735
500
100FP(D)-32 (15)
2500 • 1200 • 1500
RPP-80-500A
0.0996
0.099
740
500
100FP(D)-32 (15)
2500 • 1200 • 1550
RPP-80-700
0.0996
0.098
735
700
100FP-50 (30)
2500 • 1800 • 1350
Steel-Lined
CSF40-65-180
0.0985
0.098
735
180
80FP(D)-30 (5.5)
1850 • 1000 • 1300
CSF40-65-280
0.0985
0.098
735
280
80FP(D)-32 (7.5)
1850 • 1000 • 1300
CSF40-100-360
0.0985
0.098
735
360
100FP(D)-30 (11)
2500 • 1200 • 1500
CSF40-100-500
0.0985
0.098
735
500
100FP(D)-32 (15)
2500 • 1200 • 1500
