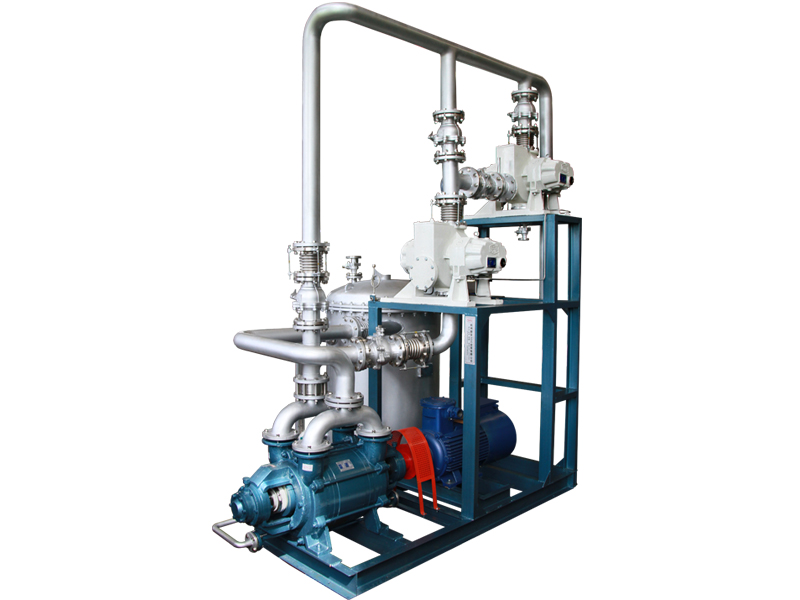

FJZJS Series Roots-Atmospheric Water Ring Vacuum Unit

The FJZJS series corrosion-resistant Roots-atmospheric-ejector-water-ring vacuum unit consists of a water-ring pump, a Roots pump (as the main pump), and an atmospheric ejector. These units feature a high ultimate vacuum level and corrosion-resistant wetted parts. They are widely used in processes such as vacuum evaporation, filtration, drying, concentration, distillation, and vacuum crystallization across industries including food, petroleum, chemicals, pharmaceuticals, metallurgy, and electron

GET A QUOTE

Download

View all downloads

Description

Selection Guide

Water-ring vacuum pump models are typically designated in the format "II FSK - 8," where the parameters signify the following:

II — Second-generation water-ring pump

F — Corrosion-resistant

SK — Water-ring vacuum pump

8 — Maximum pumping capacity (m³/min)

Performance Specifications Table

Product Model	Pumping speed (L/s)	Pump Model										Inlet/Outlet Diameter (mm)
Product Model	Pumping speed (L/s)	Ultimate pressure (≤Pa)	Main pump	Power (kW)	Rotational speed (r/min)	Intermediate pump	Power(kw)	Rotational speed (r/min)	Fore-vacuum pump	Power(kw)	Power(r/min)	Inlet/Outlet Diameter (mm)
FJZJS70-4P	70	40	ZJC70	2.2	2900				IIFSK-4	7.5	1450	65/65
FJZJS150-4P	150	40	ZJC150	3	2900				IIFSK-4	7.5	1450	65/65
FJZJS150-6P	150	40	ZJC150	3	2900				IIFSK-6	11	1450	80/80
FJZJS150-8P	150	40	ZJC150	3	2900				IIFSK-8	15	1450	80/80
FJZJS300-6P	300	40	ZJP300	4	2900				IIFSK-6	11	1450	100/80
FJZJS300-8P	300	40	ZJP300	4	2900				IIFSK-8	15	1450	100/80
FJZJS150-70-4P	150	2	ZJC150	3	2900	ZJC70	2.2	1450	IIFSK-4	7.5	1450	65/65
FJZJS300-150-6P	300	2	ZJP300	4	2900	ZJC150	3	2900	IIFSK-6	11	1450	100/80
FJZJS300-150-8P	300	2	ZJP300	4	2900	ZJC150	3	2900	IIFSK-8	15	1450	100/80

Note: ① The performance figures in the table are based on a gas temperature of 20°C, an atmospheric pressure of 1013.25 hPa (equivalent to 760 mmHg), a relative gas humidity of 70%, and a circulating water supply temperature of 15°C.
② Pumping speed tolerance: ±10%. (1 mmHg = 1 Torr = 133.3 Pa; 0.1 MPa = 750 mmHg)

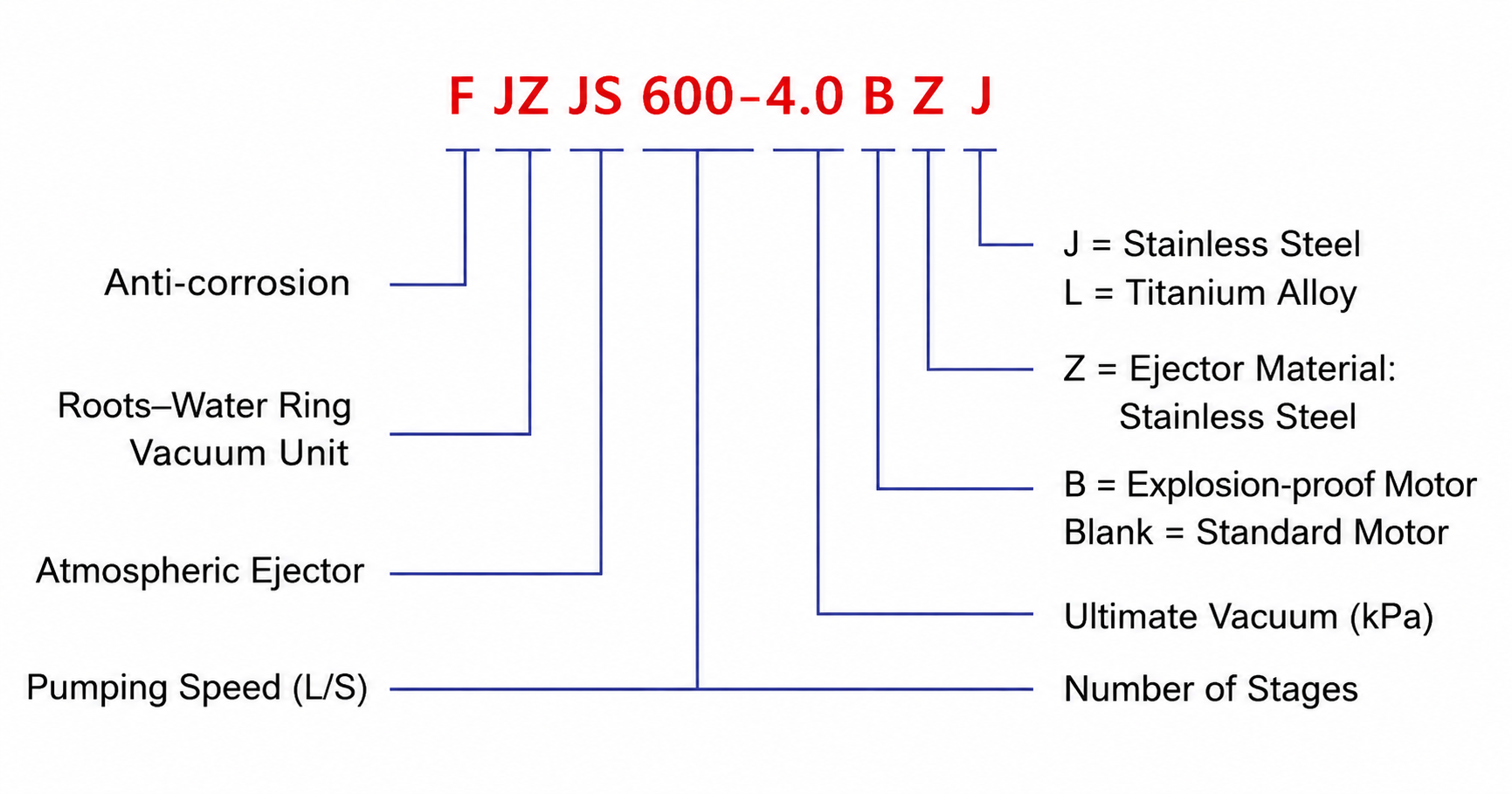

Model Designation
