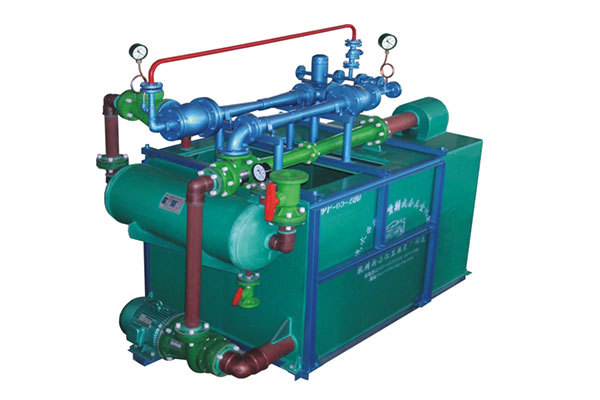

RPP series steam-water series water jet complete vacuum unit
Xin'anjiang RPP steam-water jet vacuum unit integrates a full water jet set and anti-corrosion steam jet pumps. It delivers high vacuum, large displacement, corrosion resistance, non-toxicity and easy installation. Widely applied for vacuum absorption, filtration, concentration, drying, crystallization, conveying, deoxygenation and oxygenation in chemical, pharmaceutical, textile, food, metallurgy, environmental and lab industries.
Xin'anjiang brand steam-water series water jet vacuum unit (RPP water jet vacuum unit) consists of a water jet unit and multiple anti-corrosion steam jet pumps and other components.
Features
It features high vacuum, easy installation, corrosion resistance, non-toxicity, and large exhaust volume.
Use It is widely used in vacuum absorption, filtration, concentration, drying, crystallization, conveying, deoxygenation and vacuum oxygenation processes in industries such as chemical, pharmaceutical, textile, food, metallurgy, environmental protection and laboratories.
Model parameter table:
Product Mode
Absolute pressure(mmHg)
Maximum air extraction rate (m³/h
Pumps
Steam pressure (MPa)
Steam consumption (kg/h)
model
Power (kW)
QSJW-RPP-II-280
1.5-10
Based on the maximum pumping capacity of the matching water jet vacuum pump technical parameters.
80FP(D)-32
11
0.1≤P≤0.3
38
QSJW-RPP-II-360
1.5-10
100FP(D)-20
15
0.1≤P≤0.3
38
QSJW-RPP-II-500
1.5-10
100FP(D)-32
15
0.1≤P≤0.3
38
QSJW-RPP-III-280
0.5-5
80FP(D)-32
7.5
0.1≤P≤0.3
60
QSJW-RPP-III-360
0.5-5
100FP(D)-20
11
0.1≤P≤0.3
60
QSJW-RPP-III-500
0.5-5
100FP(D)-32
15
0.1≤P≤0.3
60
Steam pump stages
Operating steam pressure (gauge)
(MPa)
Gas consumption (kg/h)
Absolute pressure (mmHg)
Maximum air extraction rate (m³/h)
Level 1
Level 2
一级
0.1≤P≤0.3
38
1.5~10
Based on the maximum pumping capacity of the matching water jet vacuum pump technical parameters.
二级
0.1≤P≤0.3
0.1≤P≤0.3
60
0.5~5
Note: The test conditions are: working water temperature 25℃, test medium is air, standard atmospheric pressure 760mmHg.
