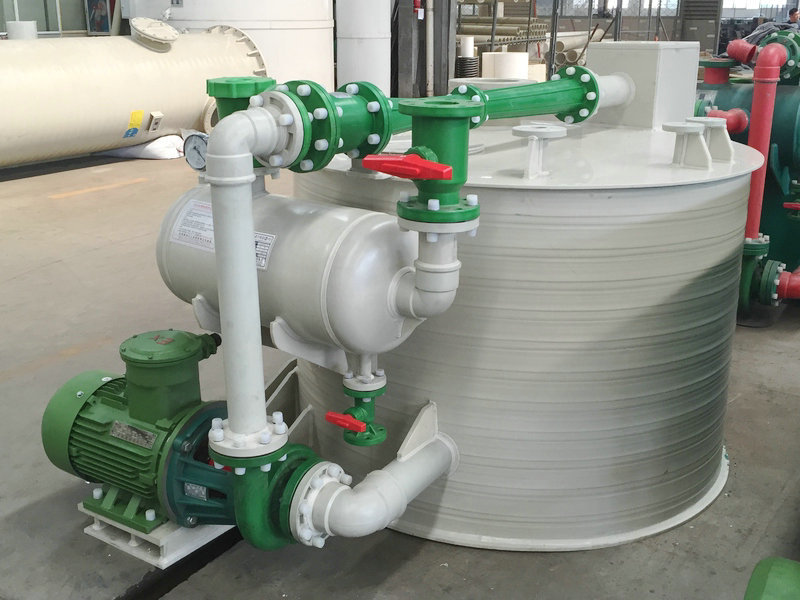

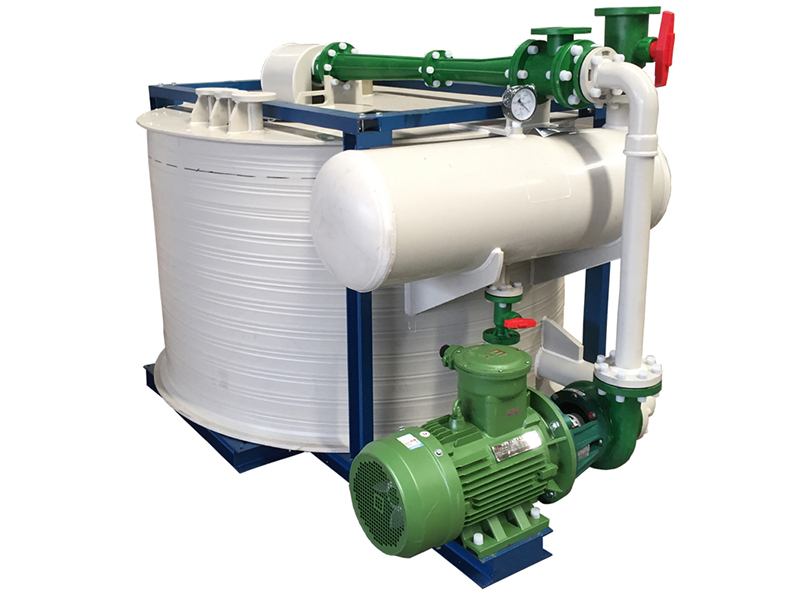

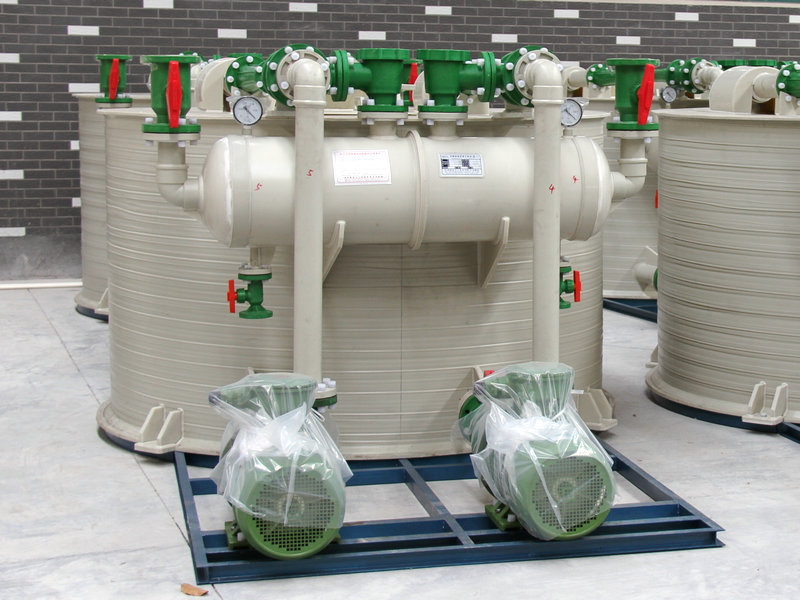

Circular water jet vacuum unit

Our self-developed patented Xin'anjiang series water jet vacuum pump adopts reinforced polypropylene and F40 steel lining for superior corrosion resistance. Paired with a steam jet pump, it delivers higher vacuum. Compact, simply structured with few wear parts, it features high mechanical strength and smooth surfaces. Outperforming counterparts, it offers longer service life, larger displacement and better vacuum.

GET A QUOTE

Download

View all downloads

Description

Overview

The Xin'anjiang series water jet vacuum pump is a patented product independently developed by our company. It uses reinforced polypropylene plastic and F40 steel lining, providing excellent corrosion resistance. When used in series with a steam jet pump, it achieves even higher vacuum levels. This product features strong corrosion resistance, high mechanical strength, a smooth surface, simple structure, small size, and few vulnerable parts. Compared to similar products on the market, it boasts a longer service life, larger exhaust volume, and higher vacuum level.

Model Description

Performance range diagram

Model Description

Product Model		Ultimate Vacuum (MPa)	Guaranteed Vacuum		Maximum Pumping Capacity (m³/h)	Matching Model and Motor Power (kW)	Overall Size L × W × H (mm)	Remarks
Product Model		Ultimate Vacuum (MPa)	MPa	mmHg	Maximum Pumping Capacity (m³/h)	Matching Model and Motor Power (kW)	Overall Size L × W × H (mm)	Remarks
RPP	RPP-25-20	0.0985	0.098	735	20	40FP(D)-18 (1.5)	1100•600•800	Note:The actual vacuum degree is based on the local atmospheric pressure at that time · the guaranteed vacuum degree of this technical parameter.
	RPP-32-40	0.0985	0.098	735	40	50FP(D)-22 (2.2)	1100•700•800
	RPP-40-60	0.098	0.097	728	60	50FP(D)-25 (3)	1550•1000•1150
	RPP-54-90	0.098	0.097	728	90	65FP(D)-28 (4)	1750•1000•1200
	RPP-54-110	0.0985	0.0975	732	110	80FP(D)-30 (5.5)	1750•1000•1200
	RPP-54-180	0.0993	0.098	735	180	80FP(D)-30 (5.5)	1850•1000•1250
	RPP-65-280	0.0993	0.098	735	280	80FP(D)-32 (7.5)	1950•1000•1300
	RPP-65-280A	0.0996	0.099	740	280	80FP(D)-32 (7.5)	1950•1000•1350
	RPP-65-360	0.0995	0.098	735	360	100FP(D)-30 (11)	2450•1200•1300
	RPP-80-280A	0.0995	0.098	740	360	100FP(D)-30 (11)	2450•1200•1300
	RPP-80-360A	0.0998	0.099	740	360	100FP(D)-30 (11)	2450•1200•1350
	RPP-80-500	0.0995	0.098	735	500	100FP(D)-32 (15)	2500•1200•1500
	RPP-80-500A	0.0996	0.099	740	500	100FP(D)-32 (15)	2500•1200•1550
	RPP-80-700	0.0996	0.098	735	700	100FP-50 (30)	2500•1800•1350
Steel-Lined	CSF40-65-180	0.0985	0.098	735	180	80FP(D)-30 (5.5)	1850•1000•1300
	CSF40-65-280	0.0985	0.098	735	280	80FP(D)-32 (7.5)	1850•1000•1300
	CSF40-100-360	0.0985	0.098	735	360	100FP(D)-30 (11)	2500•1200•1500
	CSF40-100-500	0.0985	0.098	735	500	100FP(D)-32 (15)	2500•1200•1500
