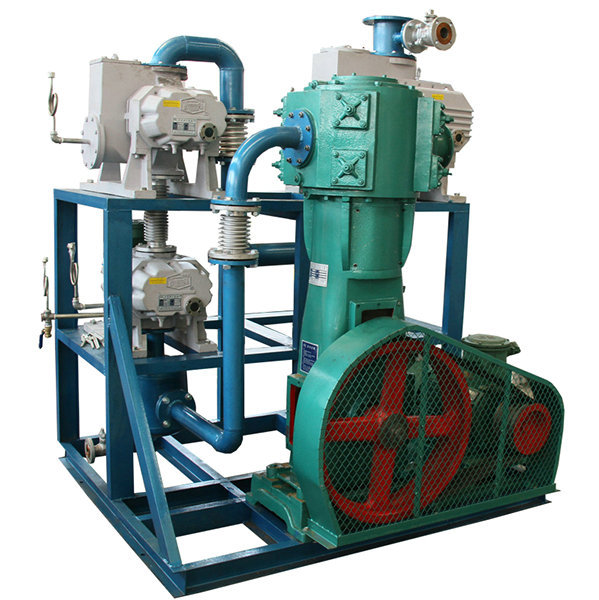

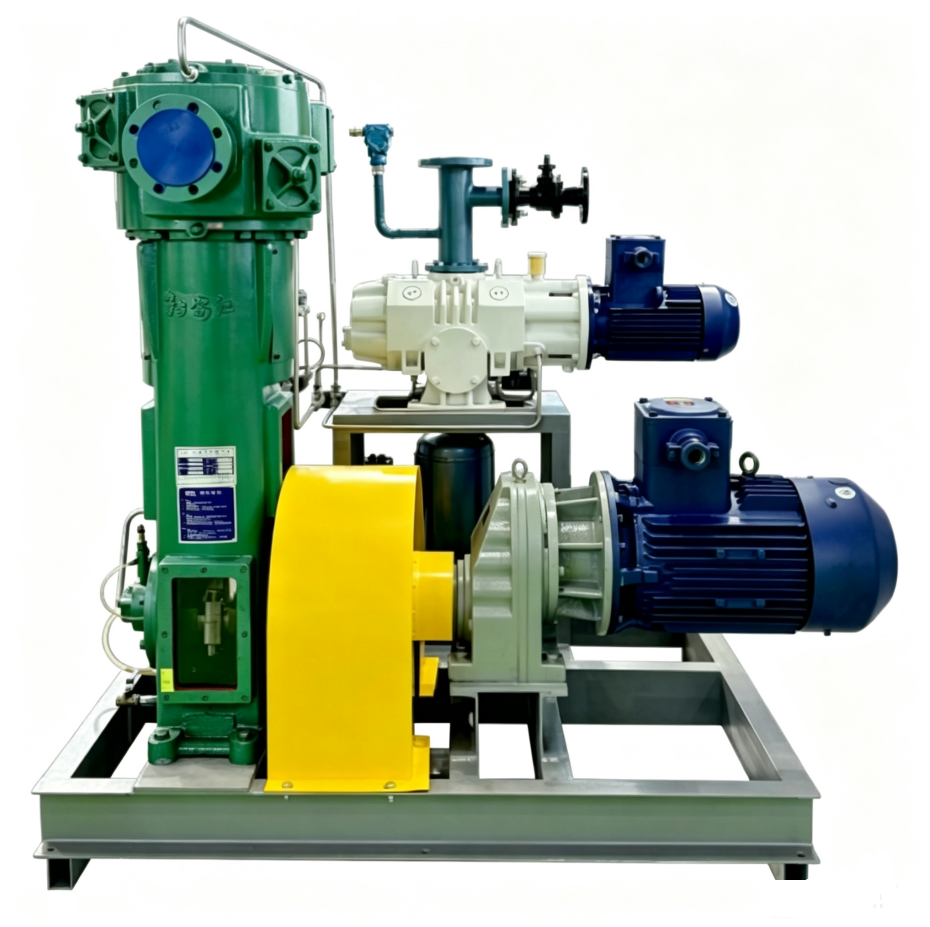

JZJWLW Series Oil-Free Vertical Vacuum & roots (booster)vacuum Pump units

JZJWLW series Roots oil-free vertical complete vacuum unit is a pumping system composed of roots pump as the main pump and oil-free vertical vacuum pump as the front pump. It is the trend of vacuum industry in the new century and is designed for our company and customers to pursue the goal of environmental protection, high efficiency and recyclability.

The unit can obtain a high vacuum of more than 150pa, and the pumping speed drop is small in the high vacuum state. The exhaust gas collection device can be installed at the exhaust port to collect gases that can not be condensed or compressed, such as cyclodiene, benzene, toluene, alcohols, etc.,

Product Features

• Energy Saving: Reduces energy consumption by up to 35%.
• Water Saving: Saves up to 60% of water usage.
• Space Saving: Requires up to 60% less installation space.
• Oil-Free Lubrication: Provides a clean and contamination-free vacuum environment.
• Clean Exhaust Gas Recovery: Enables the clean recovery and reuse of exhaust gases.
• Long Service Life: Equipped with a radial valve system, offering a service life more than 500 times longer than conventional valve designs.
• Low Vibration & Low Noise: Ensures stable operation with minimal vibration and reduced noise levels.
• Compact & Attractive Design: The WLW Series Oil-Free Vertical Vacuum Pump features a simple, modern, and aesthetically pleasing appearance.
• Easy Operation & Maintenance: Designed for convenient operation and servicing.
• Low Operating Cost: Delivers reliable performance while minimizing overall operating and maintenance expenses.

  Model Designation
